After a plastic reel sample passes an equipment trial, the project cannot be reduced to the phrase make it like the sample. Without a recorded sample identity, drawing revision, material and key inspection points, later teams may face several similar-looking reels and be unable to tell which one controls the order. Sample approval needs an explicit link to a controlled specification.
The approval record should state the sample number or other durable identifier, approval date, applicable project and drawing revision. For split, snap-fit or assembled structures, record the complete assembly condition in which approval occurred. Photographs help identify the item, but keep the original files and viewing direction; images do not replace dimensions or material information that they cannot show.
A controlled specification separates current requirements from superseded information. If the drawing, sample, email explanation and written checklist differ, first confirm which source controls the present work and define the limited reference value of older material. Do not automatically combine a feature from an old sample with a new drawing or infer an unwritten parameter from a similar appearance.
Sample validation should cover mounting, winding or pay-off on the actual equipment and, where applicable, the full package, handling, stacking and transport risk. Every result has to remain linked to its test conditions. One successful trial supports the recorded machine, material, interface and duty; it is not universal approval for every machine or operating condition.
Before a later order starts, use a short checklist: can the approved sample still be identified, does the drawing revision match, are material and colour requirements clear, have critical dimensions or interfaces changed, and are inspection criteria transferred with the order? If any item changes, review it before production or resampling rather than attempting to reconstruct the decision from finished appearance.

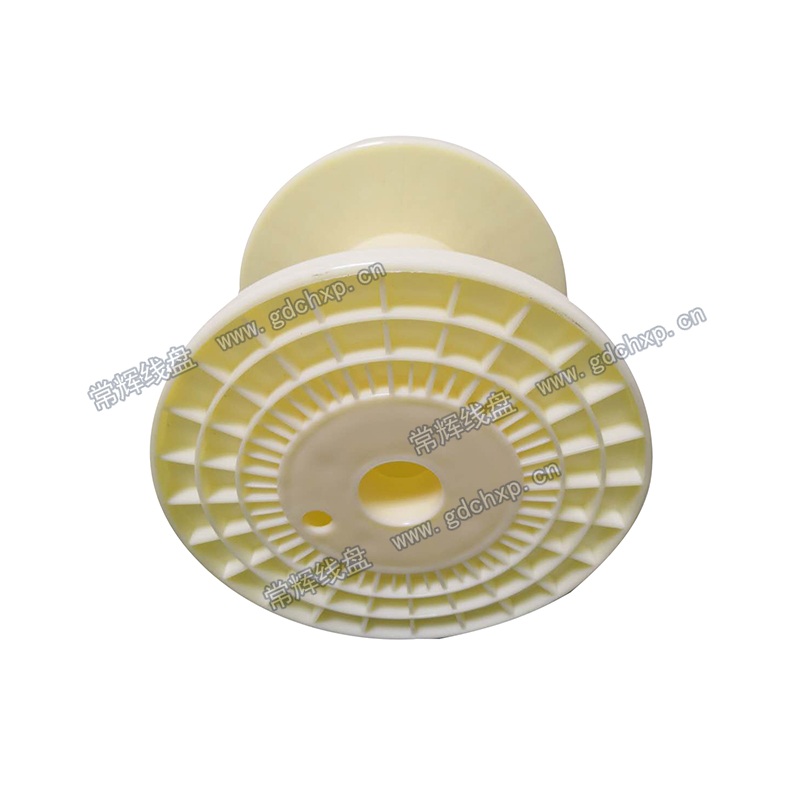

Changhui Spool Manufacturer's public product centre can help identify reels with different appearances and structures, while the public custom specification guide recommends retaining an approved sample and controlled specification. These resources organise communication but do not replace the project's formal approval record. The photograph is a general product example, not a customer sample or approval claim.
