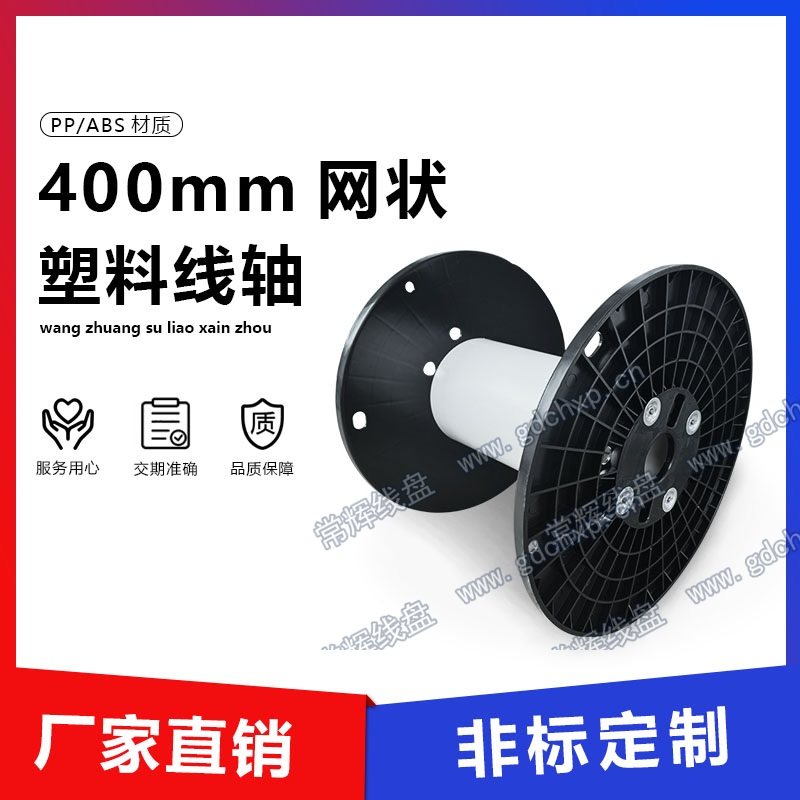

Changhui's product catalogue includes a 400 mesh plastic reel. Its main image carries a 400 mm product description and a PP/ABS material label. This published information provides a starting point for identifying the reel and requesting details, but the image is not a complete engineering drawing with dimensions, tolerances and operating conditions. Include the product link when contacting Changhui as your spool manufacturer.
The illustration shows a ribbed flange, central openings and a barrel between the flanges. These features help identify the area under discussion, such as the flange edge, centre bore or winding barrel. They do not justify estimating bore size, wall thickness or internal width from photographic proportions. Check actual dimensions against the relevant drawing or sample.
List flange diameter, overall width, usable winding width, barrel diameter and bore details separately, with units and measurement locations. Do not interpret the 400 mm marking as confirmation of every mating dimension. If its reference point is unclear, ask which dimension it describes before comparing it with the machine requirements.
Machine compatibility involves more than one bore measurement. Provide available information about the mounting shaft, locating or clamping arrangement and areas that need clearance. Distinguish verified details from measurements still required. Comparing the actual interface with the product documentation avoids assuming that a similar-looking reel will fit.
The material to be wound, intended loading quantity, handling method and storage environment form a separate set of requirements. Describe the actual application instead of inferring load capacity, operating speed or temperature limits from the ribs, colour or a single product image. Suitability for operating conditions requires confirmation for the specific reel and, where needed, appropriate validation.
A useful enquiry for Changhui's 400 mesh plastic reel can fit into one organised checklist: product link, available drawings, dimensions to check, machine interface information, application and material requirements. Mark unknown items as pending confirmation rather than inserting estimated values. This turns a catalogue reference into a clear basis for discussion with the plastic spool manufacturer.
